Chain of Responsibility · 责任链

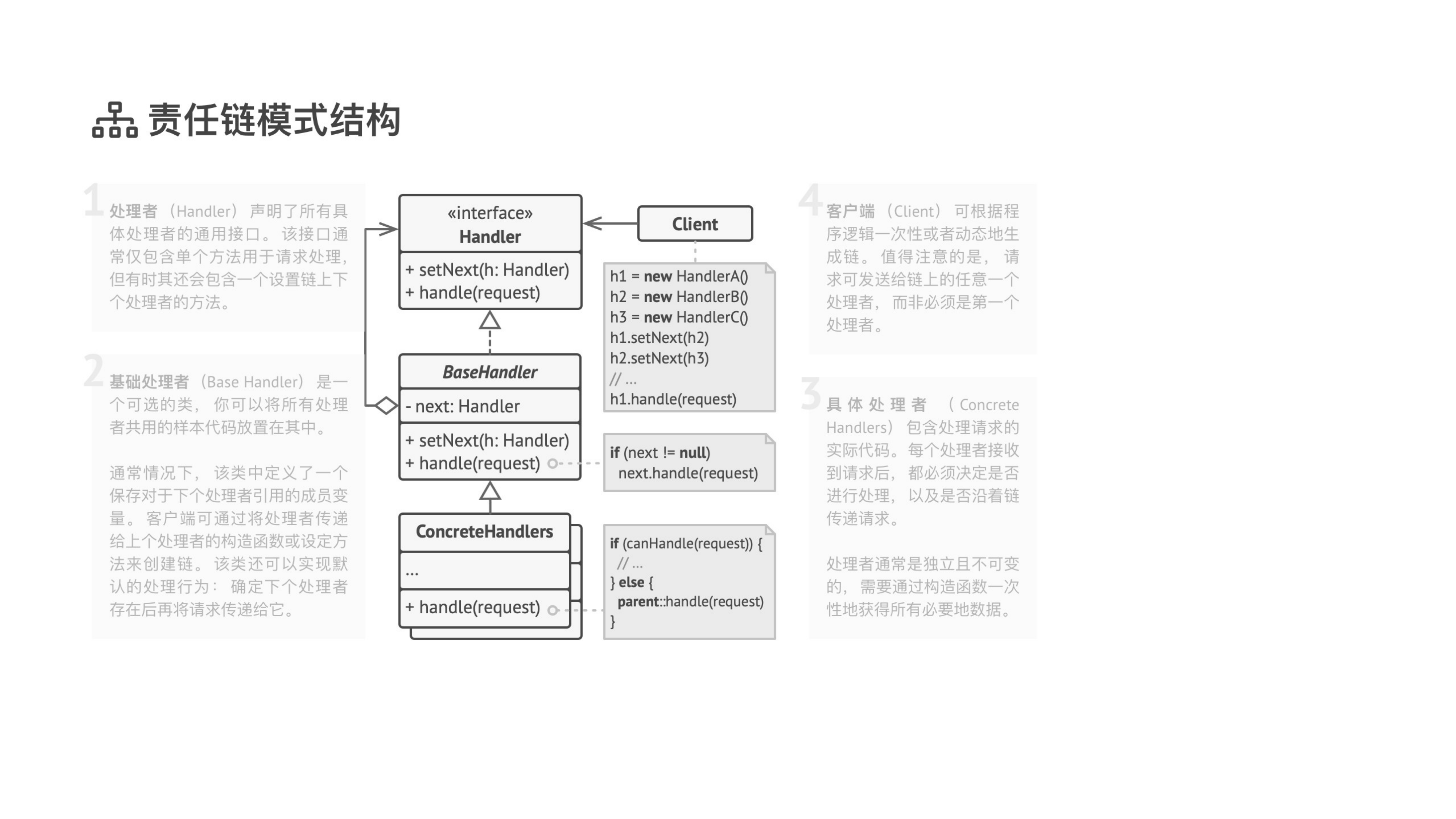

UML 类图

classDiagram class middleware { <<abstract>> -next middleware +setnext(next middleware) middleware +check(email string,password string) boolean +checknext(email string,password string) boolean } class throttlingmiddleware { -requestcount int -threshold int$ -starttime long +check(email string,password string) boolean } class userexistsmiddleware { -server server +check(email string,password string) boolean } class rolecheckmiddleware { <<stateless>> +check(email string,password string) boolean } class server { -users hashmap~string,string~ -middleware middleware +use(middleware middleware) +login(email string,password string) boolean +hasemail(email string) boolean } middleware <|-- throttlingmiddleware middleware <|-- userexistsmiddleware middleware <|-- rolecheckmiddleware middleware o-- middleware : next server o-- middleware

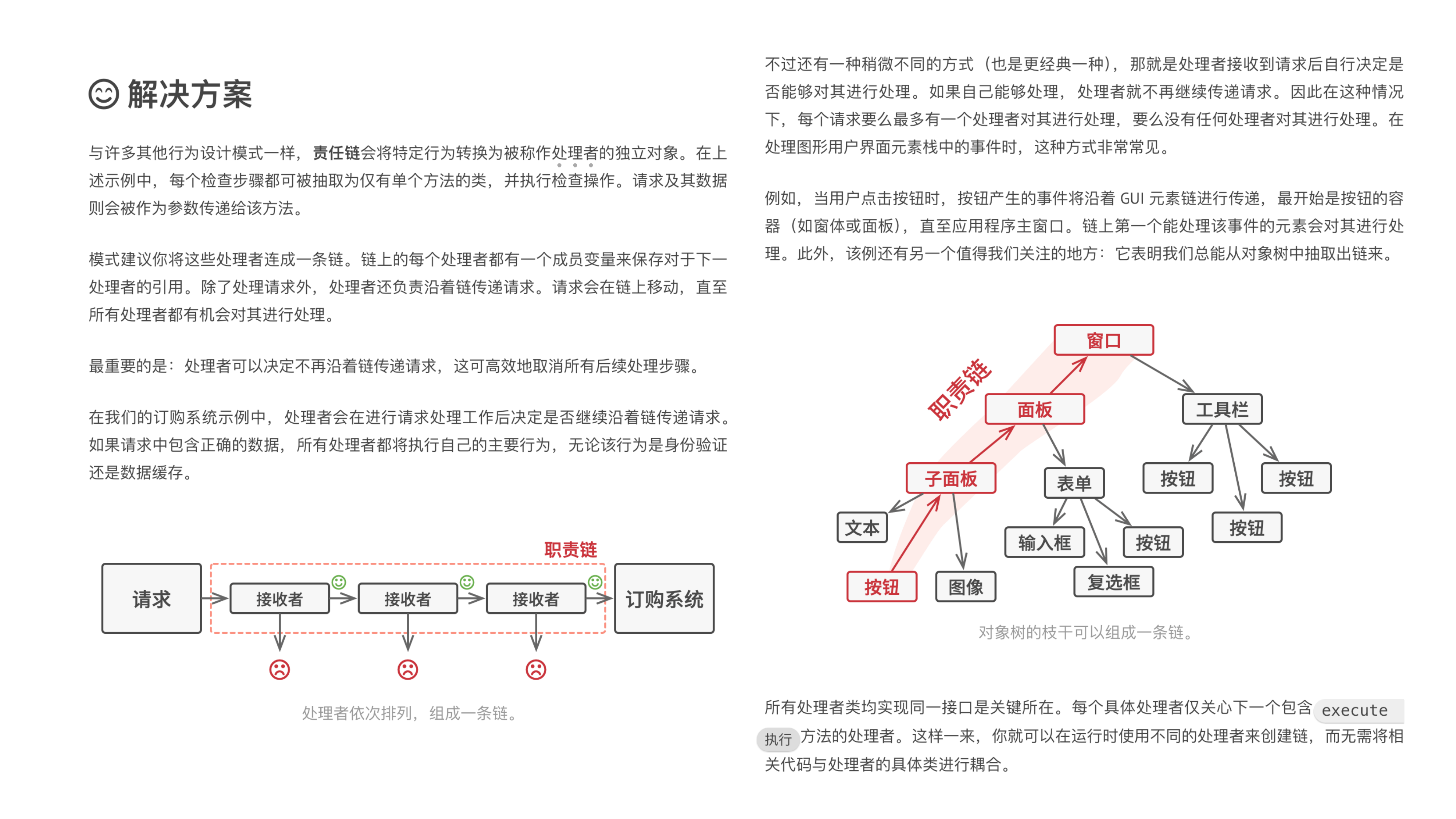

请求沿处理者链依次传递，每个节点可以处理、拒绝或继续传递

案例演示

点击 Run 执行认证链...








/** 抽象处理者：定义责任链接口 */
public abstract class Middleware {
    private Middleware next;

    public Middleware setNext(Middleware m) {
        next = m;
        return m;
    }

    public boolean check(String email, String password) {
        return checkNext(email, password);
    }

    protected boolean checkNext(String email, String password) {
        if (next == null) return true;
        return next.check(email, password);
    }
}
/** 限流中间件：检查请求频率是否超限 */
public class ThrottlingMiddleware extends Middleware {
    private int requestCount;
    private static final int THRESHOLD = 100;
    private long startTime = System.currentTimeMillis();

    public boolean check(String email, String password) {
        requestCount++;
        if (System.currentTimeMillis() - startTime > 60000) {
            requestCount = 0; startTime = System.currentTimeMillis();
        }
        if (requestCount > THRESHOLD) {
            System.out.println("ThrottlingMiddleware: Too many requests!");
            return false;
        }
        return checkNext(email, password);
    }
}
/** 用户存在检查中间件 */
public class UserExistsMiddleware extends Middleware {
    private Server server;

    public UserExistsMiddleware(Server server) {
        this.server = server;
    }

    public boolean check(String email, String password) {
        if (!server.hasEmail(email)) {
            System.out.println("UserExistsMiddleware: user not found");
            return false;
        }
        return checkNext(email, password);
    }
}
/** 角色检查中间件：验证管理员权限 */
public class RoleCheckMiddleware extends Middleware {
    public boolean check(String email, String password) {
        if (email.equals("admin@example.com")) {
            System.out.println("RoleCheckMiddleware: admin access granted");
            return checkNext(email, password);
        }
        System.out.println("RoleCheckMiddleware: regular user");
        return checkNext(email, password);
    }
}
import java.util.HashMap;

/** 服务器：持有中间件链，负责登录 */
public class Server {
    private HashMap<String, String> users = new HashMap<>();
    private Middleware middleware;

    public void use(Middleware m) { middleware = m; }

    public boolean login(String email, String password) {
        return middleware.check(email, password);
    }

    public boolean hasEmail(String email) {
        return users.containsKey(email);
    }
}
public class Demo {
    public static void main(String[] args) {
        Server server = new Server();
        Middleware m = new ThrottlingMiddleware();
        m.setNext(new UserExistsMiddleware(server))
         .setNext(new RoleCheckMiddleware());
        server.use(m);

        server.login("admin@example.com", "password");
    }
}

核心要点

◈

发送者与接收者解耦

发送者（客户端）只需将请求发给链头，不需知道链上有谁、谁会处理；每个处理者只知道自己的下一个处理者。

◈

链式传递，请求自动流动

ThrottlingMiddleware → UserExistsMiddleware → RoleCheckMiddleware 依次检查，任一返回 false 即停止。

◈

灵活调整责任链

setNext() 支持运行时动态调整链的顺序和组成，新增/删除处理者无需修改已有代码，符合开闭原则。

◈

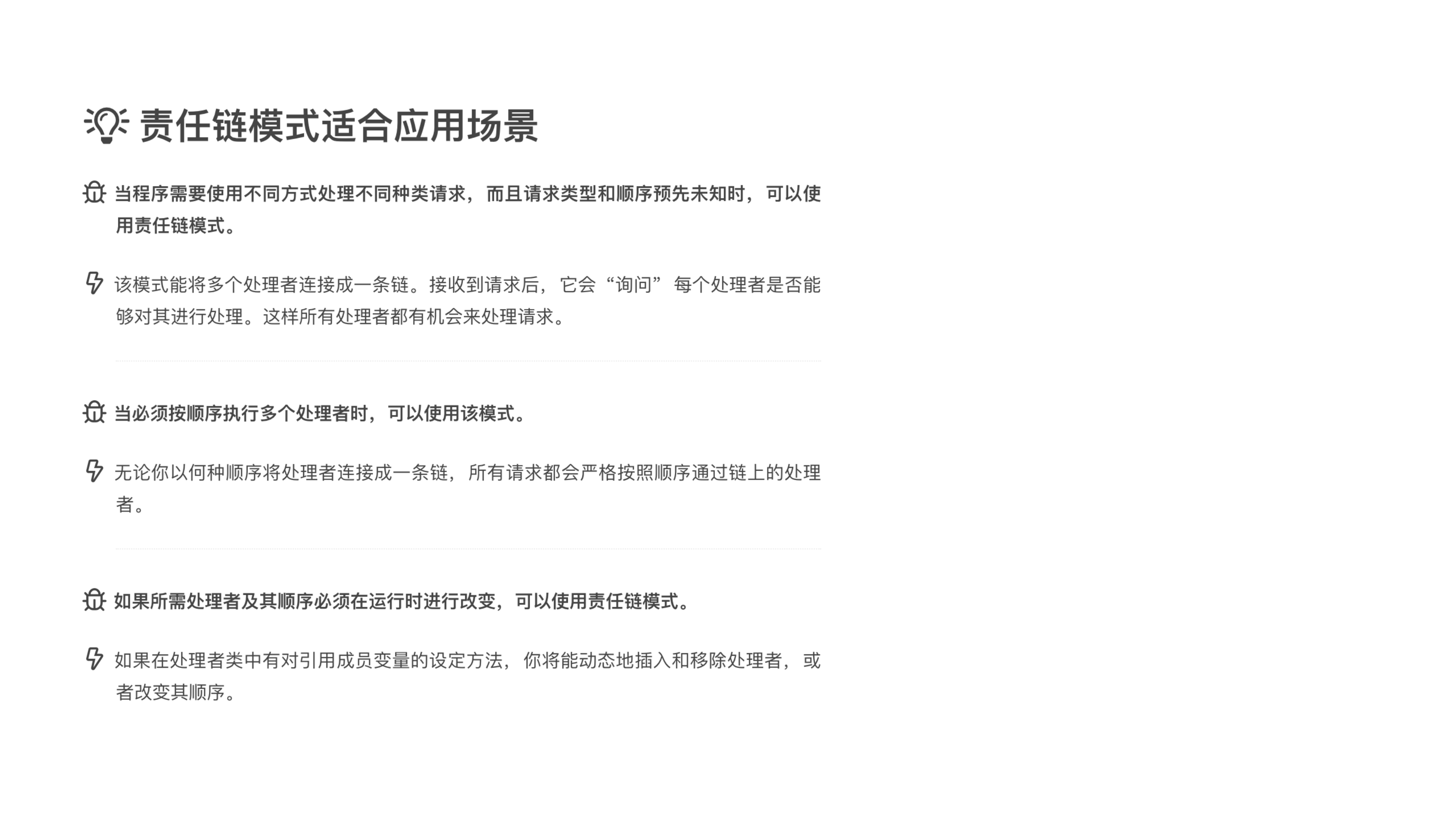

典型应用场景

Web 请求过滤（Spring Security Filter Chain）、日志级别处理（Logger Chain of Responsibility）、GUI 事件处理、Android View 事件分发。
